Name: Textile Rotary Screen Endring Stork 640 repeat 725 819 914 1018
Brand: Winwell
Availability: InStock
Rating: 5 (1 reviews)

Description

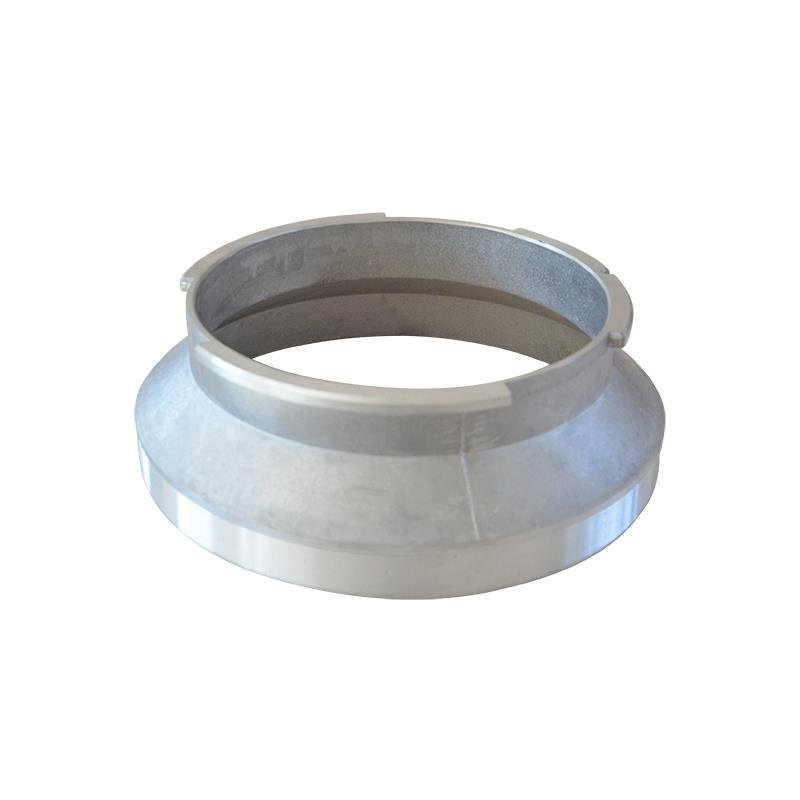

The Endring is a precision-engineered component used in rotary screen printing machines. It is designed to be bonded to both ends of a nickel rotary screen, providing structural support and a mechanical interface for the machine's driving system.

1. Key Functions

Structural Integrity: Maintains the perfect cylindrical shape of the thin nickel screen under tension.
Power Transmission: Couples the screen to the printing machine’s drive heads via notches or lugs to ensure synchronized rotation.
Registration Precision: Ensures accurate color-to-color alignment (fitting) during the multi-color printing process.

2. Technical Parameters

Item	Description
Compatible Brands	Stork, Zimmer, Reggiani, Buser, MBK, Laxmi, etc.
Standard Repeats (Circumference)	640mm (Standard), 819mm, 914mm, 1018mm
Material	High-grade Aluminum Alloy (most common), Zinc Alloy, or Copper
Manufacturing Process	High-pressure Die Casting & CNC Precision Machining
Surface Treatment	Polished finish or Anodized (for corrosion resistance and better glue adhesion)

FQA:

Q: Which machines is this end ring compatible with?
A: This end ring is designed for Stork Reggiani rotary printing machines, with standard and custom sizes available (640mm, 819mm, 914mm, 1018mm).
Q: What is the function of this end ring?
A: It is mounted on the ends of rotary nickel screens, securing them to the repeat heads and ensuring stable rotation during the printing process.
Q: What sizes are available for this end ring?
A: We offer standard sizes including 640mm (standard), 819mm, 914mm, and 1018mm, matching common screen repeat lengths.
Q: What material is this end ring made of?
A: It is typically made of high-strength metal (aluminum alloy or steel) for durability, precision, and compatibility with high-speed printing operations.
Q: Can this end ring be used with other rotary printing machine brands?
A: Yes. It can be adapted to other machines that use the same repeat head specifications and screen sizes as Stork Reggiani models.
