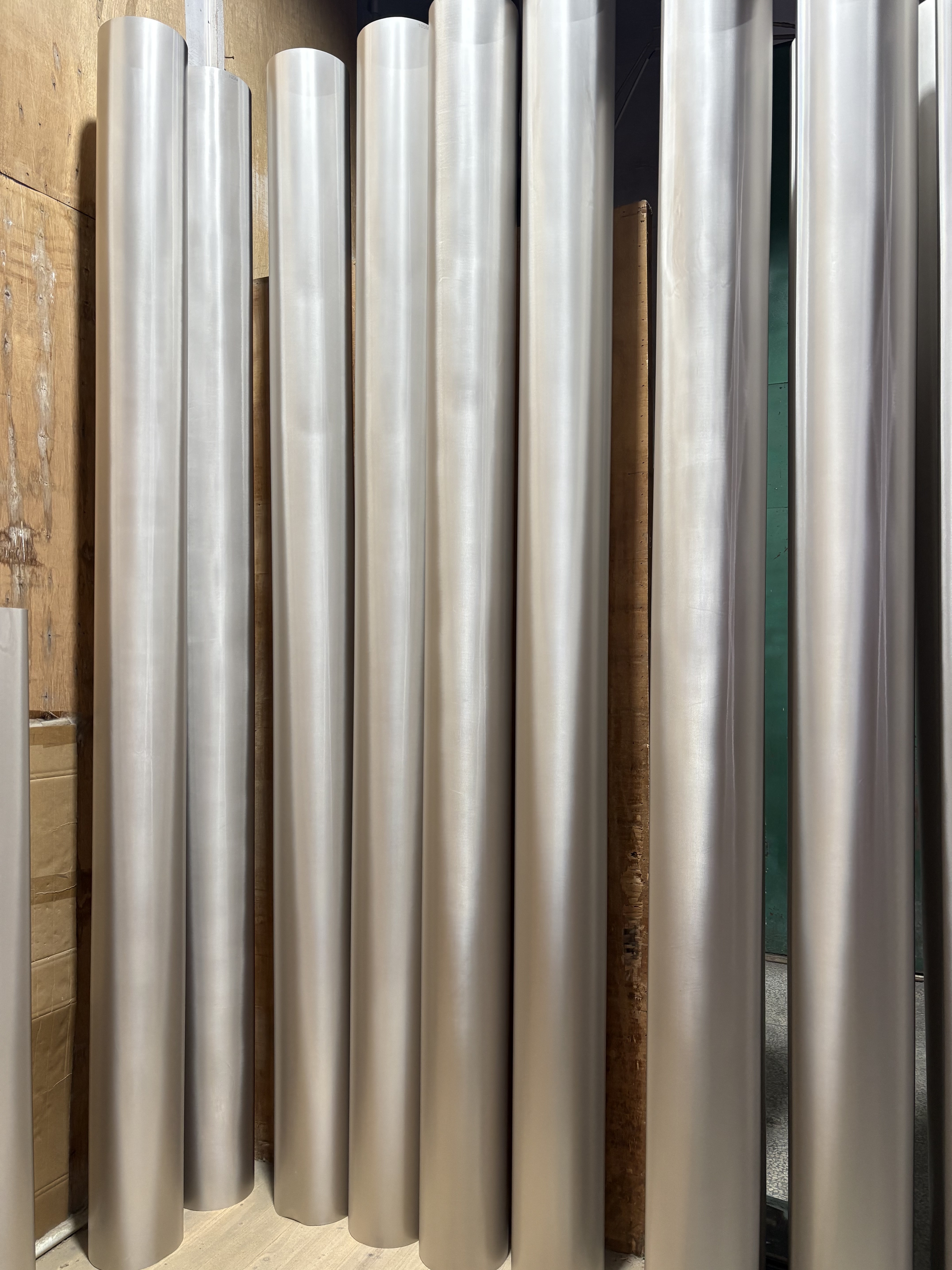

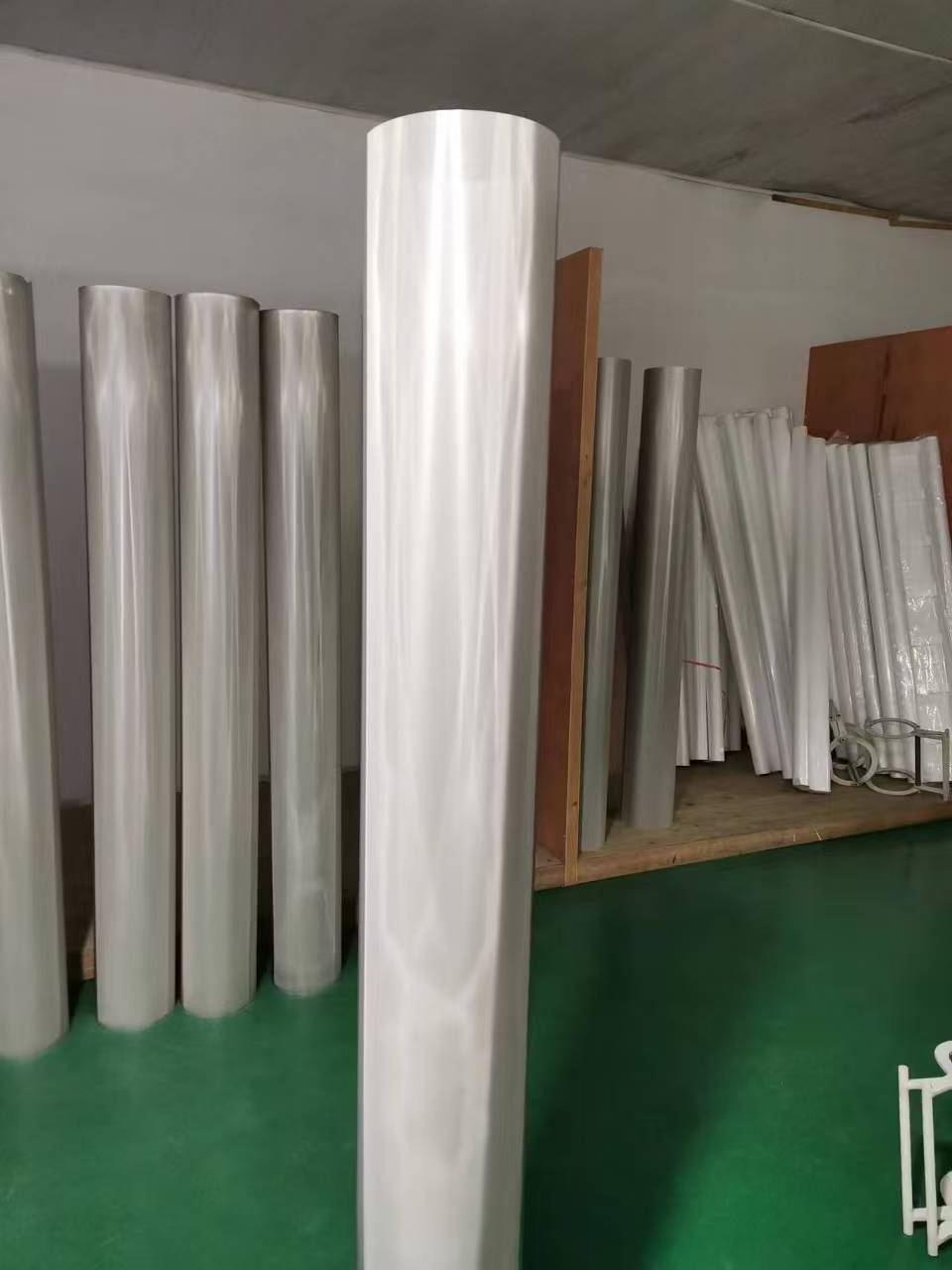

Name: Rotary Printing Screen Rotary Nickel Screen Length 1410-3500mm
Brand: Winwell
Availability: InStock
Rating: 5 (1 reviews)

Description

Penta Screen Specification
Repeat (mm)	530/640/688/725/819/914/1018
Length (mm)	1410-3500
Mesh (Mesh)	Thickness (um)	Open area (%)	Diameter (um)
25	160-165	30-32	720
40	145-150	28-30	318
60	115-120	18-20	161
70	110-115	16-18	131
80	110-115	16-18	105
100	105-115	15-17	74
105	105-115	15-17	94
125	100-105	14-16	79
125V	100-105	14-16	79
135	100-105	13-15	72
135V	100-105	13-15	72
155	100-105	12--13	60
165	100-105	12--13	71

Made of pure nickel, featuring high strength, high toughness, corrosion resistance and high temperature resistance, ensuring stable long-term performance in printing operations.

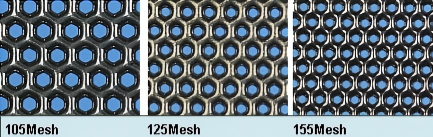

Precision electroformed mesh structure with a variety of mesh counts (e.g., 60, 80, 100, 125 mesh), which can be selected to match printing precision and color paste viscosity.

Key Advantages

1. High-precision Printing: Uniform mesh design guarantees even color paste penetration, delivering clear and delicate printed patterns.
2. Durability & Stability: Pure nickel construction offers high strength and corrosion resistance, withstanding long-term high-speed printing operations and extending service life.
3. Versatility: A wide range of mesh counts and sizes are available to meet the requirements of different fabrics, color pastes and printing processes.
4. Easy Cleaning & Maintenance: Smooth surface resists color paste residue, facilitating cleaning and reuse to reduce production costs.

FAQ:

Q: What is the length range of this screen?

A: The available length range is 1410–3500mm, suitable for different rotary printing machine models and fabric processing widths.
Q: Can this screen be used with different rotary printing machine brands?

A: Yes. It is compatible with most mainstream rotary screen printing machines, as long as the machine’s repeat head specifications match the screen dimensions.
Q: Do you provide custom specifications or samples of this rotary screen?

A: Yes. We offer custom-sized screens to match specific machine requirements, and samples are available for quality testing.

Q: How do your nickel screens ensure high printing precision?

A: Our screens are made from high-purity nickel with uniform mesh holes and consistent thickness. This ensures even color paste permeability and sharp pattern outlines. The high open area allows for excellent ink flow, which is critical for printing clear, high-definition designs on various fabrics.

Q: How are the screens packaged to prevent damage during shipping?

A: We use reinforced circular tubes or specialized wooden crates to ensure the screens remain perfectly round and crease-free during international transit. Each screen is carefully inspected and secured to prevent any surface scratches or structural deformation before dispatch.
