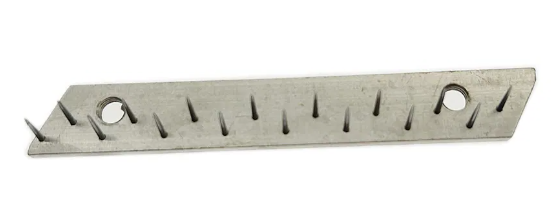

The Bruckner Stenter Pin Plate, also known as a stenter pin bar or needle plate, is a key component of the fabric guiding and holding system in textile finishing machines.
During stenter processing, the fabric edge is fixed by the pins on the pin plate while the fabric passes through different processing zones, including drying, stretching, and heat-setting areas.
A properly maintained pin plate helps maintain stable fabric positioning and supports consistent fabric width control during continuous production.
Product Features
1. Designed for Bruckner Stenter Machines
This pin plate is designed for use on Bruckner textile finishing machines and can be supplied as a replacement spare part according to the original component specification.
2. Stable Fabric Holding Performance
The precision-positioned pins provide effective fabric gripping during the finishing process, helping reduce fabric movement and maintain stable processing conditions.
3. Replacement According to Sample or Drawing
Different Bruckner machines may use different pin plate designs, dimensions, and pin arrangements.
We recommend providing:
- Existing pin plate photo
- Machine model
- Dimensions
- Pin quantity
- Pin spacing
- Technical drawing
for accurate confirmation before ordering.
4. Suitable for Textile Finishing Applications
The pin plate is widely used in:
- Fabric drying
- Heat-setting
- Fabric stretching
- Width control
- Textile finishing production lines
Technical Specifications
| Item |
Specification |
| Product Name |
Bruckner Stenter Pin Plate |
| Alternative Name |
Bruckner Pin Bar / Needle Plate |
| Machine Brand |
Bruckner |
| Machine Type |
Stenter / Heat Setting Machine |
| Function |
Fabric Edge Holding |
| Application |
Textile Finishing |
| Installation Position |
Pin Holder / Pin Bar Carrier |
| Pin Material |
According to specification |
| Plate Material |
According to specification |
| Customization |
Available according to sample or drawing |
Applications
1. Textile Dyeing and Finishing Factory
Bruckner pin plates are widely used in textile mills for continuous fabric finishing operations.
Typical fabrics include:
- Polyester fabrics
- Cotton fabrics
- Blended fabrics
- Knitted fabrics
- Technical textiles
2. Heat-Setting Process
During heat-setting, the pin plate helps hold the fabric edge while the fabric passes through high-temperature chambers.
3. Fabric Width Control
The pin plate supports stable fabric positioning to help maintain consistent fabric width after finishing.
4. Stenter Machine Maintenance
When existing pin plates become worn, damaged, or lose gripping performance, replacement is required to maintain production efficiency.
5. Spare Parts Inventory
Suitable for:
- Textile factories
- Dyeing houses
- Textile machinery maintenance companies
- Stenter spare parts distributors
Advantages
Reliable Fabric Holding
Designed to provide stable fabric gripping during continuous textile processing.
Replacement Compatibility
Supplied according to original samples, drawings, and machine specifications.
Support for Customized Production
Different pin lengths, spacing, plate sizes, and structures can be discussed according to customer requirements.
Reduce Machine Downtime
Having replacement pin plates available helps textile factories reduce maintenance delays.
FQA:
Q1: What is a Bruckner stenter pin plate used for?
A Bruckner stenter pin plate is used to hold the fabric edge during textile finishing processes such as drying, stretching, and heat-setting.
Q2: Is this pin plate compatible with all Bruckner stenter machines?
Different Bruckner stenter models may use different pin plate specifications. Please provide your existing part photo, drawing, or dimensions for compatibility confirmation.
Q3: What information should I provide when ordering a Bruckner pin plate?
Please provide:
1.Machine model
2.Pin plate photo
3.Length and width
4.Pin quantity
5.Pin spacing
6.Drawing if available
This helps confirm the correct replacement part.
Q4: Can you manufacture Bruckner pin plates according to samples?
Yes. We can supply replacement pin plates according to customer samples, drawings, and technical requirements.
Q5: What other Bruckner stenter spare parts do you supply?
We also supply other Bruckner stenter machine spare parts, including:
- Bruckner Stenter Clip
- Bruckner Stenter Chain
- Bruckner Chain Link
- Bruckner Pin Holder
- Bruckner Brush Wheel
- Other textile finishing machine components
