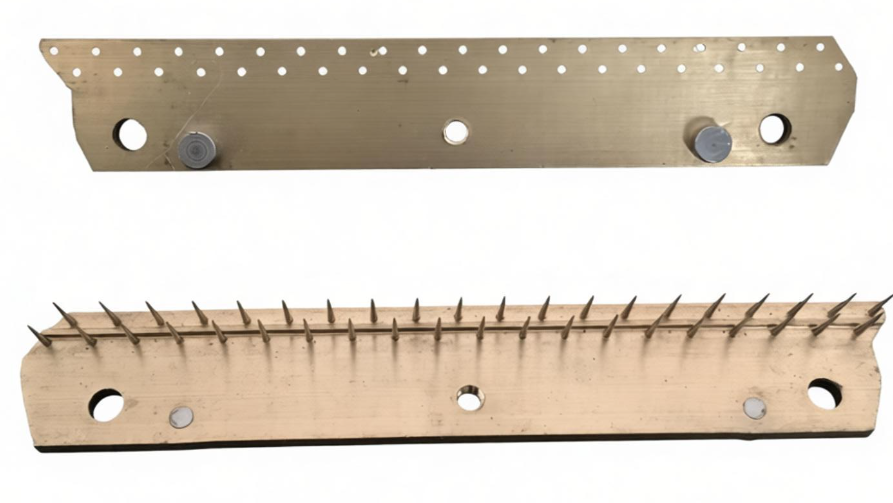

Name: High-Precision Brass Monforts Stenter Spare Parts Pin Plate Durable Textile Finishing Spare Parts
Brand: Winwell
Availability: InStock
Rating: 5 (1 reviews)

Description

Product Overview

Our premium Pin Plates (also known as Pin Bars) are engineered for high-performance textile processing. Manufactured using high-grade Brass and high-tensile stainless steel pins, these plates ensure impeccable fabric stability and dimensional control during the heat-setting, drying, and stretching processes. Designed to withstand continuous operation in extreme thermal environments up to 220°C, they are the ultimate choice for modern dyeing and finishing plants.

Technical Specifications (Standard Model)

Specification	Details
Compatibility	Brückner, Monforts, Artos, Krantz, LK Stenters
Base Material	Premium Brass / Nickel-Plated Alloy
Pin Material	High-Carbon Steel / SUS 304/316 Stainless Steel
Pin Count	30, 34, 40, or 60 Pins (Customizable arrangements)
Standard Dimensions	118mm x 16mm / 80mm x 11mm (Center Distance: 60mm)
Heat Resistance	Up to 220°C (428°F) continuous
Surface Finish	Precision Polished / Anti-Corrosive Nickel Plating

Key Features & Benefits

Superior Thermal Stability: 2026 advanced alloy technology ensures the base remains perfectly flat and pins remain secure even under 24/7 high-temperature cycles.
Fabric-Friendly Pin Tips: Each pin is ultra-fine polished to penetrate delicate or heavy fabrics (lace, denim, knits) without causing fiber damage or "pinhole" defects.
Enhanced Corrosion Resistance: Our specialized nickel-plating process protects against harsh textile chemicals, finishing agents, and moisture, extending the service life by 30-50%.
Plug-and-Play Fit: Precision-machined to original OEM CAD specifications for seamless installation on Brückner horizontal and vertical chains, minimizing machine downtime.

Industrial Applications

Optimized for the stretching, drying, and heat-setting of:

Cotton, Linen, and Silk fabrics.
Synthetic and Polyester blends.
High-tension technical textiles and automotive fabrics.

Why Choose Our Spare Parts?

2026 Precision Manufacturing: We utilize automated CNC drilling and pin-setting to ensure needle tip alignment within a ±0.05mm tolerance.
Factory Direct Pricing: Eliminate middlemen and access competitive wholesale rates directly from the manufacturer.
Global Shipping & Support: Fast international logistics (DHL/FedEx/Sea) and comprehensive technical support for large-scale replacements.
Customization (OEM/ODM): Provide your samples or drawings, and we can customize the pin density, angle, and plate dimensions to your exact needs.

FQA:

Q: Which stenter machines is this pin plate compatible with?
A: This brass pin plate is a direct replacement part designed specifically for Monforts stenter machines, used in textile heat-setting and finishing processes.
Q: What material is this pin plate made of, and what are its advantages?
A: It is made of high-precision brass, offering excellent corrosion resistance, heat conductivity, and wear resistance. The brass material ensures stable performance even under high-temperature textile finishing conditions.
Q: What is the role of this pin plate in the stenter machine?
A: The pin plate grips the fabric edges firmly during the heat-setting process, maintaining consistent fabric tension and dimensional stability for uniform width and high-quality finishing results.
Q:Where are the main markets?
A. Our main markets are in Asia, the Middle East, Europe, Africa, South America and other overseas markets, and we are deeply trusted by customers worldwide.
Q: Can you provide custom sizes or samples of this pin plate?
A: Yes. We offer custom pin plates to match specific Monforts machine models, and samples are available for quality and compatibility testing. The sample fee will be fully refunded once you place a bulk order meeting our MOQ.
