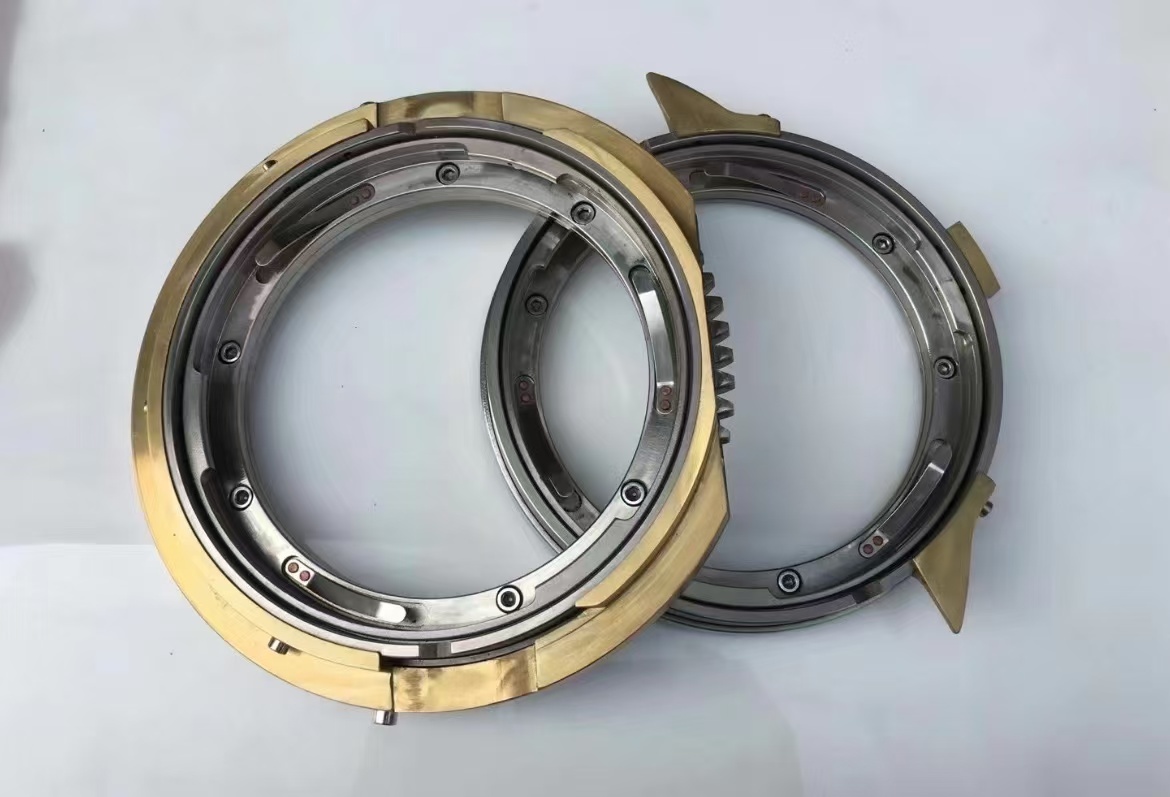

It is Installed at the driving and driven ends of rotary screen printing machines, this gear set is used to clamp and position the rotary screen cylinder, transmitting torque while ensuring concentricity and stability during high-speed rotation, thus guaranteeing printing precision.
Material & Performance
- The outer layer is made of brass/bronze, offering excellent wear resistance and corrosion resistance to cushion impacts and extend service life.
- The inner layer is made of stainless steel/alloy steel, ensuring structural strength and precision, with resistance to wear and deformation.
- Built-in locking and positioning structures enable quick screen cylinder clamping, with convenient operation and precise positioning.
Structure & Form
- Ring-shaped split design, with toothed transmission structure and locking jaws, compatible with rotary screen cylinders of different specifications.
- Precision-machined surface ensures a tight fit with the screen cylinder, preventing screen misalignment or offset during printing.
Compatibility
- Compatible with major rotary screen printing machine brands such as Jilong, MBK, Juwang, Degao Yongxin, etc.
- Can directly replace original equipment parts.
Key Advantages
- High-precision Positioning: Ensures screen cylinder concentricity, avoiding pattern offset or ghosting in printing.
- Wear & Corrosion Resistance: Brass-stainless steel composite material adapts to long-term high-speed operation and humid working conditions.
- Quick Clamping: Modular design allows for fast screen cylinder replacement, improving production efficiency.
- High Compatibility: Versatile fit for mainstream rotary screen printing machine models.
FAQ:
-
Q: What is this repeat head used for?
A: It is a core component for
rotary screen printing machines, specifically designed to hold and drive rotary nickel screens during the printing process.
-
Q: What does "640 repeat" mean?
A: The 640 refers to the repeat circumference of the screen, which is the standard size for printing patterns with a 640mm repeat length.
-
Q: What is the difference between active and passive repeat heads?
A: The active head drives the rotary screen through gears or belts, while the passive head supports the other end of the screen, ensuring smooth and synchronized rotation.
-
Q: Is this repeat head compatible with my rotary printing machine?
A: Yes. It is designed for machines that use the 640mm repeat standard, making it compatible with most common rotary screen printing models.
-
Q: Do you provide samples or custom specifications for this repeat head?
A: Yes. We offer samples for quality and compatibility testing, and custom specifications can be produced to match specific machine requirements.
